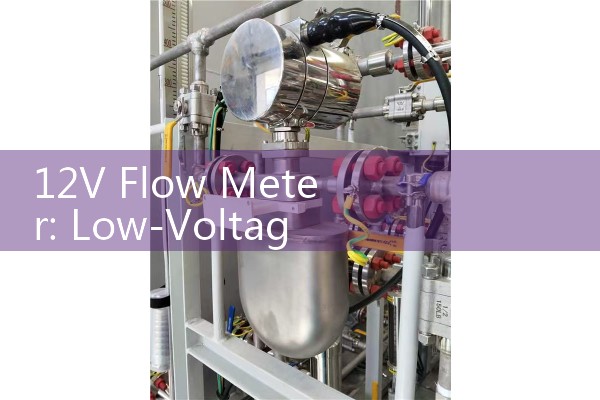

12V Flow Meter for Low Voltage DC Powered Agricultural Spray Control Valves
Quick Answer: A 12V flow meter powers directly from a sprayer battery and sends a pulse or 4-20 mA signal to the spray control valve. It gives the rate controller a real time flow signal for variable rate spraying. Silver Instruments supplies 12V flow meters from DN15 to DN50 with accuracy of plus or minus 0.5%.
Why 12V DC Power Matters for Agricultural Sprayers
Most self propelled sprayers, trailed sprayers and small utility vehicles run on 12V DC electrical systems. A flow meter that needs 220V AC or 24V DC adds a converter and more wiring. That is not practical on a boom sprayer in a rice field or a coffee plantation. A 12V flow meter connects to the same battery feed as the spray control valve and the rate controller.
We see this need often. A customer in Vietnam asked us for a flow meter that works with a 12V spray control valve on a Casotti type sprayer. The valve needed a pulse input to close the loop on a Raven rate controller. We supplied a Silver Instruments EMAG-LV12 electromagnetic flow meter with a pulse output board. The whole loop ran from one 12V battery.
What a 12V Flow Meter Does on a Spray Control Valve
On a spray rig, the flow meter sits between the pump and the spray control valve or between the valve and the boom sections. The flow meter measures the actual liquid flow. The rate controller compares actual flow to the target flow. Then the controller sends a signal to the spray control valve. The valve opens or closes to hold the rate. Without a flow meter, the controller only guesses from pressure and nozzle size.
In practice, a flow meter also helps with section control. If one boom section shuts off, the flow meter detects the lower flow and the controller adjusts the valve position. This keeps the application rate stable.
Recommended Flow Meter Types for 12V Spray Systems
Silver Instruments supplies two flow meter types for low voltage agricultural spray systems. The first is an electromagnetic flow meter. It works with conductive liquids such as liquid fertilizer, pesticide mixtures and water with salts. The EMAG-LV12 series has no moving parts and does not clog with small particles. It is available in DN15, DN20, DN25, DN32, DN40 and DN50. The second is an oval gear flow meter for clean spray adjuvants and oil based carriers. The oval gear type works with low conductivity fluids where an electromagnetic meter will not read.
For most agricultural spraying, we recommend the EMAG-LV12. It handles flow rates from 0.5 to 50 liters per minute depending on pipe size. It has a 12V DC power input and gives a pulse output or a 4-20 mA output. The pulse output is usually 0.5 to 5 mL per pulse. That scale works with most rate controllers including Raven, Arag, TeeJet and LH Agro.
Key Parameters We Quote on a Typical 12V Spray Rig
- Pipe size: DN15 to DN50
- Flow range: 0.5 to 50 liters per minute
- Power supply: 12V DC, 1.2 W maximum
- Output: pulse or 4-20 mA
- Accuracy: plus or minus 0.5% of reading
- Process connection: tri clamp, BSP thread or hose barb
- Wetted materials: polypropylene body with ceramic electrode or stainless steel body
- Liquid temperature: 0 to 60 degrees Celsius
- Pressure rating: PN10
Most engineer
Installation Points for 12V Flow Meters
Mount the flow meter in a straight run of pipe with at least 10 pipe diameters upstream and 5 downstream. That is a common rule for electromagnetic flow meters. But on a small sprayer, space is tight. We can reduce the straight run if the meter calibration is done on the actual installation. The EMAG-LV12 has a compact body that fits close to the spray control valve.
Do not install the flow meter at the highest point of the spray line. Air bubbles collect there and cause unstable readings. Put the meter after the pump and before the valve. Keep the signal cable away from the ignition coil and electric motor wires. Use shielded cable for the pulse output.
What We Have Seen in Southeast Asia, Africa and Latin America
In Thailand, sugarcane applicators use 12V flow meters on tractor mounted boom sprayers. Their main issue is liquid fertilizer with high salt content. An electromagnetic flow meter works well because the salt makes the liquid conductive. In Nigeria, groundnut farmers use small 12V sprayers for herbicide application. They need a flow meter that can handle sandy water from open tanks. The EMAG-LV12 with polypropylene body survives that better than a metal body meter.
In Brazil, soybean growers use 12V flow meters on spray control valves for variable rate fungicide application. The pulse output connects to an Arag controller. We built several DN20 meters with BSP threaded connections for that setup. The lead time was short because we keep the 12V board and pulse module in stock.
FAQ: 12V Flow Meter and Spray Control Valves
Can I power a Silver Instruments flow meter from the sprayer battery?
Yes. The EMAG-LV12 accepts 9 to 30V DC. It works directly from a 12V battery without a converter.
What output signal does a spray control valve need?
Most rate controllers accept a pulse signal. Some accept a 4-20 mA signal. We configure the EMAG-LV12 with either pulse or 4-20 mA at the factory.
Does an electromagnetic flow meter work with all pesticides?
No. The liquid must have a minimum conductivity, usually 5 micro Siemens per centimeter. Most water based pesticide mixes meet this. Oil based carriers do not. For those, use an oval gear flow meter.
What pipe size do I choose for a 12V flow meter?
Start with your pump flow rate in liters per minute. For 5 to 20 liters per minute, DN15 or DN20 works. For 20 to 50 liters per minute, choose DN25 or DN32.
Can I install the flow meter after the control valve?
Yes, but we recommend installing it before the valve. This avoids pressure drops and cavitation effects that affect accuracy.
Contact Silver Instruments for a 12V Flow Meter Quote
Send us your pressure in bar, temperature in degrees Celsius, pipe size in DN and flow range in liters per minute. Include the spray control valve brand and the rate controller model if possible. We will recommend a flow meter and send a price within one business day.
