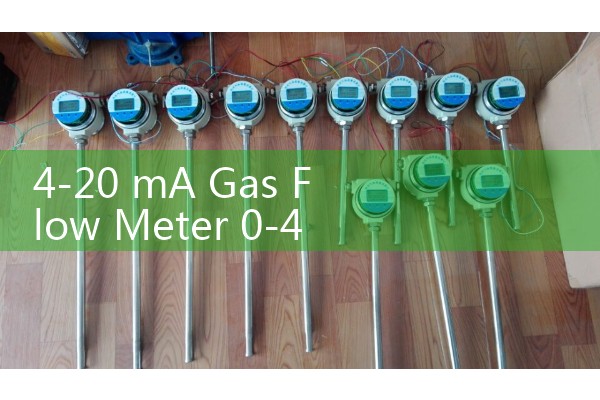

4-20 mA Gas Flow Meter 0-4000 What Units: Deciphering Telemetry Output Scales
Quick Answer: A 4-20 mA gas flow meter with a 0-4000 scale does not fix the unit. The 4 mA point equals zero flow and the 20 mA point equals 4000 in whatever unit the transmitter stores. For Silver Instruments gas flow meters the common units are Nm3/h, kg/h, m3/h, L/min, or SCFM.
Why the 0-4000 Scale Confuses Field Technicians
Here is the thing. The number 4000 is a span value, not a unit. A thermal mass flow meter on a compressed air line may be set to 0-4000 Nm3/h. A Coriolis meter on a natural gas line may be set to 0-4000 kg/h. The same 12 mA signal means 2000 in both cases. But the physical flow is different. Many technicians connect a loop calibrator and assume a unit from the nameplate. That assumption causes bad PLC scaling and wrong flow totals.
In practice, we have seen this on customer sites many times. A palm oil refinery in Malaysia had a biogas flare meter with a 0-4000 setting. The site engineer assumed m3/h. The transmitter was actually set to kg/h. The flare gas totalizer understated the flow because biogas density is low. The fix was simple. Read the unit from the HART menu and correct the PLC range.
Units You Will See on a 0-4000 Gas Flow Meter
Nm3/h is the most common unit for air, nitrogen, oxygen, and biogas. It refers to normal cubic meters per hour at standard pressure and temperature. kg/h is common for natural gas, CO2, and hydrogen. m3/h is used for actual volumetric flow at process pressure and temperature. L/min appears on small pilot systems where flow is below a few hundred liters per minute. SCFM shows up in projects that follow US engineering standards.
Silver Instruments configures the 0-4000 span before shipment. The default for thermal mass flow meters is often Nm3/h for air. Customers in food and beverage sometimes request kg/h for CO2 because their dosing system uses mass. A water treatment plant in Australia ordered a 0-4000 Nm3/h thermal mass flow meter for an ozone generator air feed. The unit matched the ozone skid manual, so commissioning took one day instead of three.
How to Read the 4-20 mA Signal Correctly
The linear formula is simple. Flow equals the measured mA minus 4, divided by 16, then multiplied by 4000. At 4 mA the flow is 0. At 8 mA the flow is 1000. At 12 mA the flow is 2000. At 20 mA the flow is 4000. The formula only works if the 4000 span unit is known.
Most engineers skip this part. They wire the loop and force a 20 mA signal. That verifies the cable but not the scaling. Check the transmitter display first. If there is no display, use a HART handheld or the supplier configuration software. Look for the 20 mA value and the unit parameter. On many Silver Instruments flow meters, the local display rotates between flow, total, and unit. This takes less than one minute. Do not rely on the nameplate if the meter was re-ranged after installation.
A Real Example from a Nitrogen Generator OEM in Thailand
Last year a customer in Thailand built nitrogen generators for food packaging. They installed a thermal mass flow meter on the nitrogen outlet. The datasheet stated 0-4000 Nm3/h. The PLC engineer scaled the 4-20 mA input as 0-4000 L/min. The HMI showed very low nitrogen flow. The packaging line purge pressure was normal, so the reading did not match physical conditions. We checked the HART configuration and found the transmitter was set to Nm3/h. After changing the PLC scale to 0-4000 Nm3/h, the flow value matched the nitrogen consumption. The root cause was a missing unit check during FAT.
How to Specify a 0-4000 Gas Flow Meter Without Guesswork
Send us the gas type, pressure in bar, temperature in °C, pipe size DN, and the required flow range. Also tell us the unit you want for the 4-20 mA span. A good request example is: natural gas, 6 bar, 25 °C, DN50, 0-4000 kg/h. Silver Instruments sets the 20 mA value and unit before shipment. This avoids PLC scaling changes after installation. We also provide the wiring diagram and a test point value. A typical test point is 12 mA equals 2000 in the configured unit.
For gas flow applications, we supply thermal mass flow meters, Coriolis mass flow meters, and vortex flow meters. The right choice depends on gas composition, pressure, temperature, and accuracy requirement. Send your process data to Tel: +86-25-68650347, WhatsApp: +86-25-52155837, or WeChat: +86 15365082610. You can also reach Silver Automation Instruments at flow-meter.com.au. We respond to most Southeast Asia, Oceania, Middle East, and Latin America inquiries within one working day.
FAQ: 5 Questions on 4-20 mA Gas Flow Meter Units
What does 0-4000 mean on a 4-20 mA gas flow meter? It means 4 mA maps to zero flow and 20 mA maps to 4000 in the configured engineering unit. The unit can be Nm3/h, kg/h, m3/h, L/min, or SCFM.
How do I know if the unit is Nm3/h or kg/h? Check the transmitter display, HART menu, or the calibration certificate. Do not rely on the nameplate only. If the meter has no display, request the configuration file from the supplier.
Can I change the 0-4000 unit on site? Yes on most Silver Instruments gas flow meters. You can change the 20 mA value, the unit, and the damping through HART or the local pushbuttons. After changing, test the loop at 12 mA. It should read 2000 in the new unit.
What is the 4-20 mA formula for a 0-4000 span? Flow equals the measured mA minus 4, divided by 16, then multiplied by 4000. At 12 mA the flow is 2000. At 20 mA the flow is 4000. Below 4 mA the transmitter may indicate a fault or a low flow cutoff depending on the configuration.
Which gas flow meter type works best with a 0-4000 scale? Thermal mass flow meters suit low to medium flow in Nm3/h or kg/h. Coriolis mass flow meters suit high accuracy mass flow in kg/h. Vortex flow meters suit actual volumetric flow in m3/h. The best type depends on gas composition, pressure, and pipe size.
