1 GPM Flow Meter: Low-Flow Precision Calibration Fluid Sizing Guidelines
Quick Answer: For a 1 GPM flow meter in low flow calibration, select DN10 or DN15. Match the calibration fluid viscosity and temperature to the process fluid. Use a Coriolis mass flow meter or an oval gear flow meter for repeatable output below 1 GPM.
A 1 GPM flow meter is a common size for dosing skids, calibration rigs, pilot plants, and fuel test benches. Yet most field accuracy problems come from one root cause. The meter is too large for the line. A 2 inch meter on a 1 GPM line produces low velocity and unstable readings.
Why 1 GPM Sizing Is Different
Most flow meters need enough fluid velocity to produce a stable signal. At 1 GPM in a DN25 pipe, water velocity is only about 0.2 m/s. That is too low for many electromagnetic and vortex meters. In a DN15 pipe, the same flow gives around 0.9 m/s. That is a practical minimum for electromagnetic flow meters. In practice, many engineers skip this check. We have seen a chemical dosing customer in Thailand run a DN40 meter at 0.5 GPM. The readings drifted by 15 percent.
Fluid Viscosity Sets the Meter Choice
Calibration fluids are not always water. Some skids use diesel, light oil, glycol, or heat transfer fluid. Diesel at 25 °C has a viscosity of 2 to 6 cP. Water at 20 °C is about 1 cP. Heavy oil can exceed 50 cP. This matters because an oval gear flow meter uses small clearances. If the fluid is too thin, slip increases. If the fluid is too thick, pressure drop rises. A paint manufacturer in Vietnam calibrated a DN15 oval gear meter with a solvent at 1.2 cP. The repeatability was poor until the meter clearances were adjusted.
Recommended Meters for 1 GPM
Silver Instruments supplies three meter types for low flow liquid calibration.

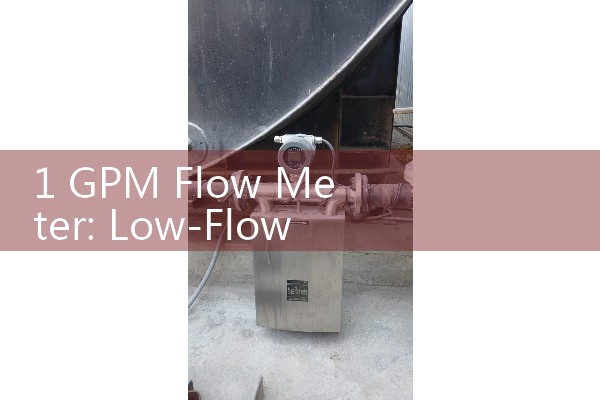

Coriolis mass flow meter: works from 0.01 to 10 GPM. It measures mass flow directly. It is not affected by conductivity or density changes. Accuracy is typically 0.2 percent of rate. The Silver Instruments SIC-100 DN15 Coriolis meter includes PT100 temperature output and 4-20 mA HART. ATEX Zone 1 options are available for solvent calibration rooms.
Oval gear flow meter: works from 0.05 to 5 GPM with oil, diesel, or viscous fluids. It needs clean fluid and a 100 mesh strainer. The Silver Instruments OG-DN15 oval gear meter suits fuel calibration benches.
Electromagnetic flow meter: works from 0.1 to 10 GPM for water-based conductive fluids. It does not work with oil or diesel. The Silver Instruments EMF-DN15 meter is a lower cost option for water calibratio
Calibration Fluid Conditioning
Air bubbles cause more low flow errors than any other factor. One bubble passing through a 1 GPM meter can create a 5 percent reading spike. Use a back pressure valve after the meter. A setting of 1 to 2 bar keeps dissolved air in solution. Install a 100 mesh strainer before the meter. We have repaired food additive meters from Indonesia where solid particles jammed an oval gear meter. The repair cost was higher than a strainer.
Temperature and Pressure Compensation
Liquid density changes with temperature. Diesel volume changes by about 0.1 percent per °C. If your calibration fluid is stored at 35 °C and the meter runs at 25 °C, the volume reading shifts. Use a meter with temperature compensation or measure mass flow. Coriolis mass flow meters from Silver Instruments include PT100 temperature measurement. Pressure has less effect on liquid volume, but stable pressure improves repeatability.
FAQ: 1 GPM Flow Meter and Calibration Fluid
Can I use a 2 inch electromagnetic meter for 1 GPM calibration water?
Technically yes, but repeatability will suffer. The velocity is too low. A DN15 electromagnetic meter is a better fit because velocity is about 0.9 m/s.
What is the best flow meter for 1 GPM diesel calibration?
A DN15 oval gear flow meter or a DN15 Coriolis mass flow meter. Diesel is non-conductive, so an electromagnetic flow meter will not work.
How much straight pipe does a 1 GPM Coriolis meter need?
Most Coriolis meters do not need long straight runs. Silver Instruments recommends 5D upstream and 2D downstream for compact calibration skids.
What fluid viscosity is too high for an oval gear flow meter at 1 GPM?
Above 100 cP, pressure drop becomes large. For heavy oil above 50 cP, a Coriolis meter is usually safer.
Can a 1 GPM flow meter be used as a calibration master meter?
Yes, if the repeatability is 0.1 to 0.2 percent. A Coriolis meter with PT100 and HART output is a common master meter choice.
