DN3 Flow Meter Engineering Standards and Flow Range Charts
Quick Answer: For DN3 flow meters, the key engineering standard is matching the meter technology to the low flow and laminar conditions inside the 3 mm bore. Silver Instruments DN3 Coriolis meters deliver 0.02 kg/h minimum flow with ±0.1 % reading accuracy. Always compare your process flow range to the manufacturer flow range chart to avoid dead band at low cut off. Request a chart specific to your fluid viscosity and density.
What DN3 Means in Flow Meter Sizing
DN3 stands for nominal diameter 3 mm. In some pipe schedules this equals 1/8 inch nominal bore but the actual inner diameter often measures 2.4 mm or less. Engineers use DN3 for micro flow injection of catalysts, fragrances, methanol, or demulsifiers. Low internal volume is the main advantage. Even a small bubble inside a DN3 Coriolis tube can shift the density reading by 5 kg/m³. When you need a DN3 flow meter, straight tube design with minimal split flow helps drain and cleaning. That is one reason Silver Instruments uses single straight tube or low profile delta tube geometries for these micro sizes.
Engineering Standards That Apply to DN3 Flow Meters
No isolated standard covers DN3 only. Instead, you follow the same international norms applied to small line size meters. For Coriolis mass flow, ISO 10790:2015 gives installation and performance evaluation guidelines. In custody transfer or fiscal metering, many regions require OIML R117 for class 0.3 or 0.5. For thermal mass flow meters on gas, the ASME MFC 21.2 standard describes calibration and uncertainty. If the meter is installed in a hazardous zone, like an offshore fuel gas skid in Southeast Asia, ATEX Ex db or IECEx protection is mandatory. Process connection specifications often call for 1/4 inch Swagelok or compression fittings rated to 400 bar. Material certificates to EN 10204 3.1 are typical for chemicals. We provide full MTR and hydrotest reports with each DN3 shipment.
DN3 Flow Range Charts by Technology
Below are practical flow range charts drawn from Silver Instruments lab data and field verifications. These ranges assume water at 20 °C and 1 bar differential pressure unless stated otherwise. For Coriolis DN3: minimum mass flow 0.02 kg/h (density above 500 kg/m³), maximum 300 kg/h. Turndown ratio up to 2000:1. Repeatability ±0.05 % of rate. For micro thermal mass flow meter dedicated to gas: 0.05 slpm to 80 slpm for air, 0.02 slpm to 40 slpm for CO₂. Accuracy ±0.5 % full scale plus ±0.1 % reading. For oval gear DN3 used on diesel and heavy fuel oil: 0.5 L/h minimum, 30 L/h maximum at 500 cP. Viscosity range up to 1500 cP with stainless steel gears. Because actual performance shifts with viscosity and back pressure, ask our team for a custom chart under your exact process conditions.
Common Mistakes When Selecting a DN3 Meter
One mistake we see often is picking a meter based only on the connection size and ignoring the actual internal flow path. A DN3 body may house a sensor with 0.5 mm capillary, causing high pressure drop at full flow. Another error is using a Coriolis meter for high gas fraction flows without back pressure control. When bubbles pass through a DN3 tube, the am
Silver Automation Instruments DN3 Flow Meter Models

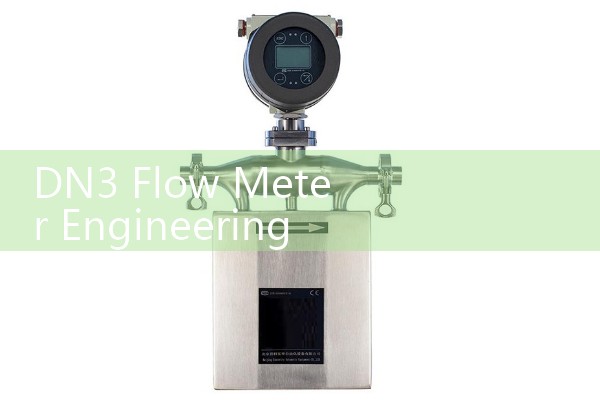

Our range covers three core technologies with DN3 inline connections. The Silver Coriolis Micro MFC03 series handles 0 to 300 kg/h and comes with a 4-20 mA HART output, pulse, and RS485 Modbus RTU. The transmitter enclosure is IP67, and we offer Ex proof versions for ATEX Zone 1. The Silver Thermal TMF03 measures micro gas flows from 0.03 slpm up to 80 slpm with a 0.2 second response. Both models accept 24 VDC power. For high viscosity oils, our Oval Gear OG03 small flow meter provides a cost effective solution with local display and pulse output. Typical lead time is 10 working days for standard DN3 meters. We ship to Australia, Chile, Saudi Arabia, Vietnam, and Nigeria regularly.
How to Request a DN3 Flow Meter Datasheet and Price
Send us your fluid name, density (kg/m³) or viscosity (cP), inlet pressure (bar), temperature (°C), pipe size (DN), minimum flow, normal flow, and maximum flow. Also mention if you need hazardous area certification, communication protocol, and process connection type. Our engineers will email a detailed flow range chart, CAD drawing, and price quotation within one business day. Contact Silver Automation Instruments through our website flow-meter.com.au or email direct to the sales team.
FAQ: DN3 Flow Meter Engineering Standards and Flow Range Charts
Q: What is the smallest measurable flow for a DN3 Coriolis meter?
A: The typical minimum mass flow is 0.02 kg/h for liquid with density above 500 kg/m³. For ultra stable applications, some models detect down to 0.005 kg/h, but zero stability must be confirmed under field conditions.
Q: Can a DN3 meter handle gas flow?
A: Yes, Coriolis can measure gas mass flow, but low density gases like hydrogen need higher pressure to generate enough Coriolis force. Thermal mass flow meters are often simpler for dry, clean gases under 100 slpm.
Q: Do DN3 flow meters need straight pipe runs?
A: Coriolis meters do not require straight runs, but you must avoid piping stress that causes offset drift. Thermal meters with insertion sensors need 10D upstream and 5D downstream straight pipe as standard.
Q: What process connections fit a DN3 meter?
A: We offer 1/4 inch compression fittings (Swagelok compatible), G1/4 male thread, or flange options for miniature pipes. For sanitary applications, tri-clamp 1/2 inch connections with DN3 internal bore are possible.
Q: How fast can I get a DN3 flow meter price?
A: When you send your process data, our team returns a PDF quotation with price, datasheet, and shipping options usually within 24 hours. Standard models ship in 2 to 3 weeks.
